4K60 Output Supported Video Wall Controller with 16 Inputs 1 Output and 16 in 1 Out Multi-viewer

Brand Name : Bitvisus

Model Number : BIT-MV-4K-1601

Certification : CE、FCC、GB

Place of Origin : Guangdong China

MOQ : 1

Price : 309

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 5-8 work days

Packaging Details : 2KG, 36cm*21.5cm*7cm

Product name : BIT-MV-4K-1601

Product type : 4K60 16 in 1 Out multi-viewer

Feature : Ultra-high definition sixteen-screen splitter

Function : 16 in 1 out, can be combined with a variety of split mode

Input : 16 HDMI

Output : 1 HDMI

Input resolution : Up to 1080p, backward compatible with low resolution

Ouput resolution : Up to 3840x1080@30Hz, can be customized

Color : Balck

Warranty : 3 Years

Contact Now

4K Seamless Switch Video Splitter 16 Inputs 1 Output Multi-viewer Professional Grade CCTV Monitoring Picture Synthesizer
Product Overview

4K 16 in 1 Out Multi-viewer
  • Ultra high-definition sixteen screen splitter with double-layer or single-layer board solution
  • Supports up to 16 HDMI signal inputs with maximum input resolution of 1920x1080@60Hz (backward compatible with lower resolutions)
  • Single channel HDMI/DVI signal output with automatic signal recognition (HDMI/DV)
  • Maximum output resolution of 3840x2160@30Hz with customizable options including 3840x1080@60Hz, 2560x1440@30/60Hz
  • 16-channel HDMI audio input with selectable output from any channel
  • Supports multiple split modes with zero delay switching and automatic mode saving
  • Flexible control via buttons or infrared remote control
Welcome to contact us to consult about the products required by your project!
Product Specifications

Product Name BIT-MV-4K-1601
Input Interface Type 16-way HDMI interface, resolution up to 1080p, backward compatible with low resolution
Audio Support 16 HDMI audio inputs, 1 HDMI audio output (1 out of 16)
Output Interface HDMI, support resolution up to 3840x1080@30Hz. Resolution can be customized
Split Mode Fullscreen, quad-split, eight screens (2 large 6 small), 16 screens, grid 16 screens 4 large 12 small
Control Mode Button, infrared remote control
Control Method Remote Control, Pushbutton, RS232, Web
Power Supply 12V @ 2A AC-DC power supply
Power Consumption 12W

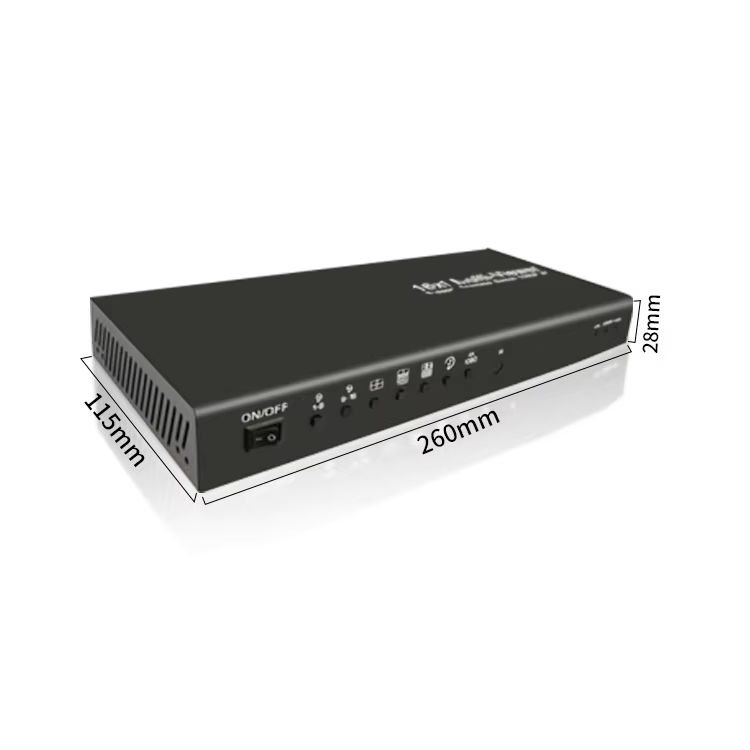

Board Size Double-layer solution: 250mm × 115mm × 45mm
After-sales Warranty 3 years warranty
Features at a Glance

4K60 Output Supported Video Wall Controller with 16 Inputs 1 Output and 16 in 1 Out Multi-viewer 4K60 Output Supported Video Wall Controller with 16 Inputs 1 Output and 16 in 1 Out Multi-viewer 4K60 Output Supported Video Wall Controller with 16 Inputs 1 Output and 16 in 1 Out Multi-viewer 4K60 Output Supported Video Wall Controller with 16 Inputs 1 Output and 16 in 1 Out Multi-viewer 4K60 Output Supported Video Wall Controller with 16 Inputs 1 Output and 16 in 1 Out Multi-viewer 4K60 Output Supported Video Wall Controller with 16 Inputs 1 Output and 16 in 1 Out Multi-viewer 4K60 Output Supported Video Wall Controller with 16 Inputs 1 Output and 16 in 1 Out Multi-viewer 4K60 Output Supported Video Wall Controller with 16 Inputs 1 Output and 16 in 1 Out Multi-viewer
Company Profile

4K60 Output Supported Video Wall Controller with 16 Inputs 1 Output and 16 in 1 Out Multi-viewer 4K60 Output Supported Video Wall Controller with 16 Inputs 1 Output and 16 in 1 Out Multi-viewer 4K60 Output Supported Video Wall Controller with 16 Inputs 1 Output and 16 in 1 Out Multi-viewer 4K60 Output Supported Video Wall Controller with 16 Inputs 1 Output and 16 in 1 Out Multi-viewer 4K60 Output Supported Video Wall Controller with 16 Inputs 1 Output and 16 in 1 Out Multi-viewer 4K60 Output Supported Video Wall Controller with 16 Inputs 1 Output and 16 in 1 Out Multi-viewer
FAQ

Why Choose Bitvisus?
  1. We maintain our own warehouse to ensure shipping within 48 hours after payment (excluding weekends and holidays)
  2. OEM/ODM services available for custom requirements
  3. Extensive product range including Video Wall Controllers, Multiscreen Expanders, Multiviewers, and Embedded Projector Fusion systems
Shipment & Payment
  • Payment Methods: T/T, Visa, PayPal, Western Union, L/C
  • Shipping Options: DHL, UPS, EMS, FedEx, Air freight, Sea freight
How to Order?
  1. Contact us via email or chat (TM, WhatsApp, Skype) with your order requirements
  2. We will provide a proforma invoice based on your specifications
  3. After payment confirmation, we will process and ship your order promptly
